VC-10 Series 1106: The Military Workhorse

Back to Main VC-10 site

The Series 1106 represents the VC-10 at its most refined and versatile, adapted for the Royal Air Force. This wasn’t just a commercial airliner in military clothing—it was a purpose-built transport and support aircraft with all the aerodynamic lessons learned from earlier models applied.

Operational Service

The Series 1106 served in multiple RAF roles:

Transport: Troops, equipment, and VIPs over long distances.
Tanker conversions: Adapted for in-flight refueling.
Military reliability: Maintained civil-era speed and comfort while meeting military logistics demands.

CAD Precision and Historical Accuracy

Key features captured in the CAD model:

Aerodynamic refinements: Fully optimized wing-fuselage connections, improved wing root chords, and smoother curves throughout for reduced drag.
Engine nacelles: Trailing-edge design now fully streamlined and more pointed than the squarish 1102 nacelles, improving airflow and performance.
Fuselage and wings: Longer, wider, and stronger than the prototype, ready to carry cargo, personnel, or converted for tanker duties.
Operational versatility: Built to serve in a variety of RAF roles—transport, troop movement, and aerial refueling adaptations in later configurations.

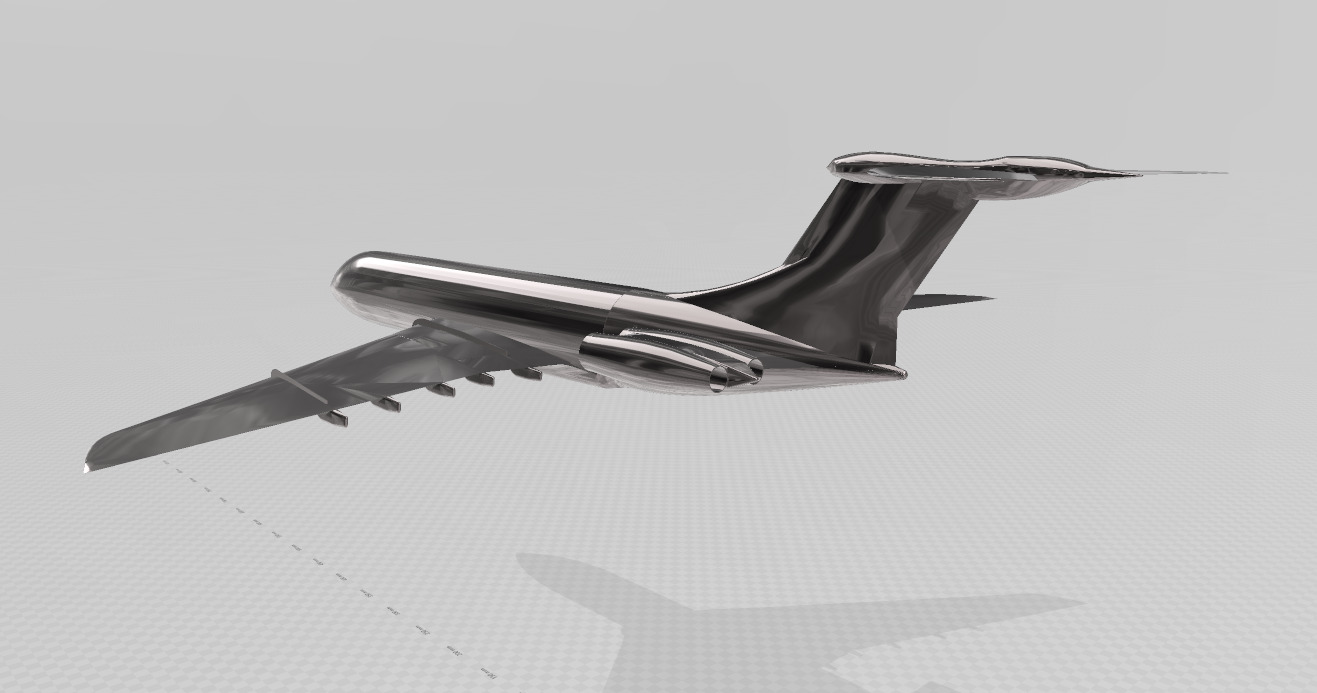

The Series 1106 is the culmination of VC-10 evolution, combining the elegance of the airliner with the rugged utility required by military service. Our CAD model captures every detail, from the precise curves of the wings to the advanced nacelle shapes, allowing you to explore the aircraft as it stood at the height of its operational life.

For historians, engineers, and enthusiasts, the 1106 shows how the VC-10 was refined, battle-ready, and aerodynamically matured—a leap forward from the civil models, yet unmistakably a VC-10.

Why It Matters

The VC-10 11106 represents the culmination of the early series VC-10’s development—the moment when elegance, utility, and performance aligned perfectly. Preserving it in CAD form means that:

Aviation historians can study the final and most iconic iteration of a legendary airliner.
Engineers and designers can explore advanced aerodynamic and structural refinements.
Modelers, 3D-printing enthusiasts, and RC hobbyists can recreate the aircraft faithfully, capturing the exact lines that define the VC-10 image in public imagination.

The Super VC-10 is more than an aircraft—it is a symbol of British aerospace engineering, mid-century elegance, and the dream of flight. Its proportions, sweeping lines, and rear-mounted engines make it instantly recognizable, and our CAD model preserves that legacy in full digital fidelity, ensuring that this iconic aircraft can be experienced, studied, and admired for generations to come.

The Legacy Preserved

With the Series 1106 VC-10, we celebrate not just an airliner, but a legend. Its its story—of refinement, ambition, and timeless elegance—is captured completely in this CAD reconstruction.

From fuselage to wings, nacelles to tail, every detail has been crafted with love, respect, and historical accuracy, ensuring that the Super VC-10 remains the definitive face of the VC-10 family, digitally immortalized for enthusiasts and professionals alike.

What You Can Do With These Packs

Depending on the pack you choose, you can:

3D print the aircraft
Build RC laser-cut models
Perform CAD or CFD analysis

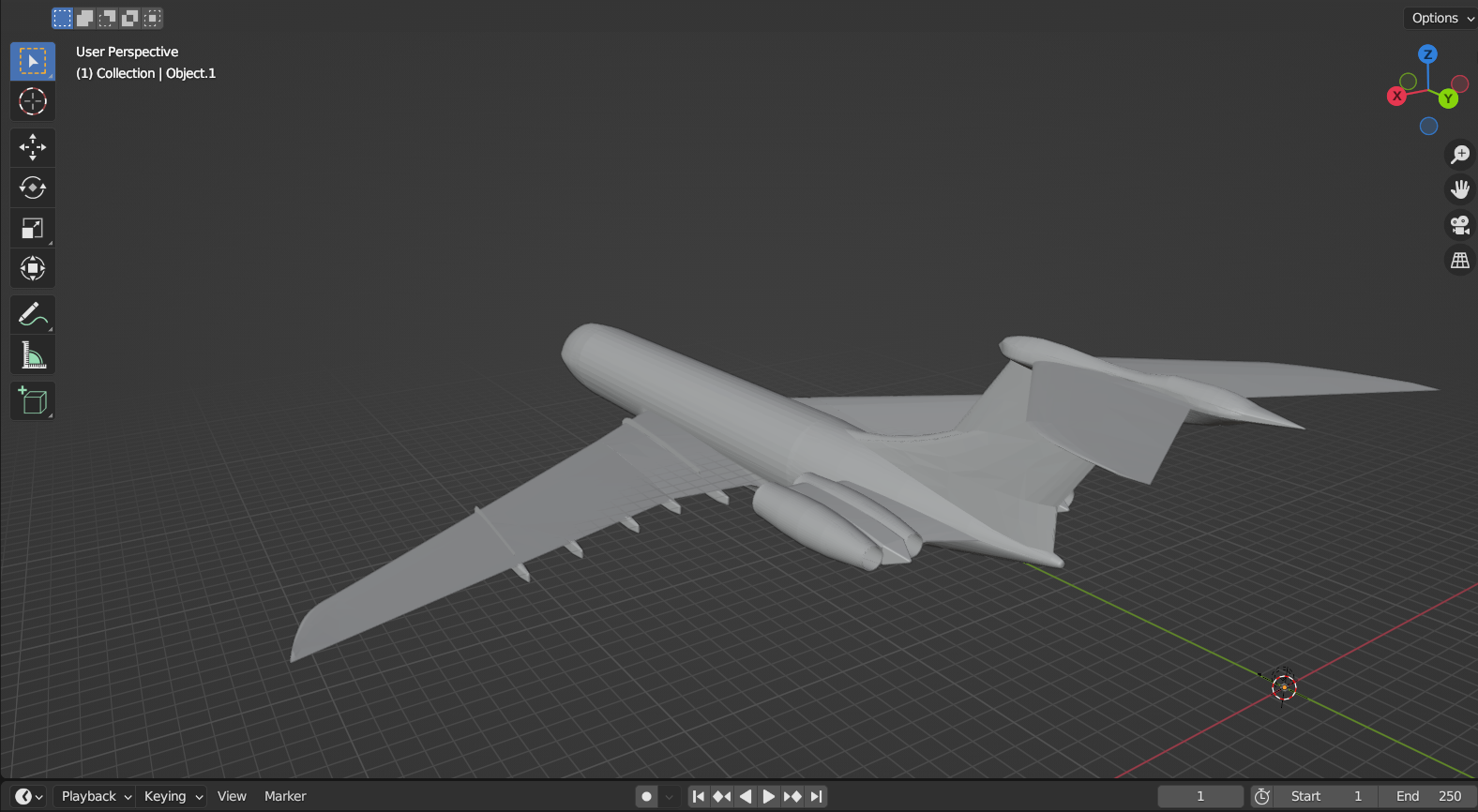

Render it in Blender
Create posters, stickers, and merch
Study the engineering form

This product line is divided into clear “factory-floor” production tiers for different users: 3D printers, CAD engineers, RC builders, artists, and hobbyists.

Pack A — 3D Printing Pack (STL + 3MF Only)

Get it from Gumroad for €5

Includes:

High-resolution STL of the aircraft
Pack A: Included Custom Aircraft Stands
Clean watertight mesh suitable for resin or FDM printing
3MF file for layout reference
Aerodynamic, smooth loft surfaces just like wind tunnel models
Ready for slicing (Cura, PrusaSlicer, Bambu Studio, Orca-Slicer)
Optional: scaled versions (1:150, but can be re-sized as 1:72, 1:144, 1:48, etc.)

Perfect for: Collectors · Modelers · 3D printer hobbyists

Pack B — RC Maker Pack (DXF + 3MF)

Get it from Gumroad for €15

Includes:

Full DXF cross-section slices (wing + fuselage) for laser cutting
Up to ~50 fuselage stations
Wing rib sections
Clean orthographic section cuts
3MF file for RC layout reference

Perfect for: RC aircraft builders · Laser-cut foam/balsa makers · Workshops

Pack C — Engineering Pack (CAD Only)

Get it from Gumroad for €20

Includes:

Full STEP 214 file (solid bodies + surfaces)
Full IGES file (solid bodies + surfaces)
Full CATIA file (solid bodies + surfaces)
Complete aircraft with precise NURBS lofts

Suitable for:

SolidWorks
Fusion 360
CATIA
Creo
Siemens NX

Engineering-grade geometry

Perfect for editing, CFD pre-processing, and derivative design work
3MF file for layout reference included

Perfect for: Engineers · Students · Aerospace researchers

Pack D — Merchandise Art Pack (DXF + PDF)

Get it from Gumroad for €7

Includes:

Clean line-art views:
3-side view (top, side, front) + Bonus 1-side view (belly)
Isometric view
Provided in DXF + PDF
PDF in both modern black-over-white diagram as well as negative-white-over-black diagram

High resolution, ready for:
