VC-10 Series 1102: The Classic Airliner

Back to Main VC-10 site

The Series 1102 is the definitive VC-10—the model that brought this iconic British airliner into widespread commercial service. While often referred to as the “generic” VC-10, it is anything but ordinary. This series represents the culmination of lessons learned from the prototype, refined into a reliable, elegant, and high-performing airliner that became the backbone of BOAC and other operators’ fleets.

Our CAD model captures every nuance of the Series 1102, allowing enthusiasts, engineers, and historians to explore the aircraft in unparalleled detail.

Design and Aerodynamics

Compared to the prototype Series 1100, the Series 1102 incorporated numerous aerodynamic refinements:

  • Fuselage: Standard production length, perfectly representing the main commercial VC-10 layout.
  • Wing design: Fully optimized with smoother wing-fuselage connections and slightly wider root chords, enhancing lift and stability.
  • Engine nacelles: Streamlined for lower drag, featuring the early “bulge” covers developed after prototype testing.
  • Wingtips: Sleek, swept, and aerodynamically refined compared to the squarish tips of the prototype.
  • Overall balance: A harmonious combination of performance, efficiency, and passenger comfort, defining the classic VC-10 silhouette.

These improvements allowed the Series 1102 to achieve better cruise efficiency, reduced fuel consumption, and more stable handling—key factors that made the VC-10 a respected airliner in its day.

Operational Significance

The Series 1102 was the workhorse of commercial VC-10 operations:

  • BOAC fleet: Most widely recognized operator, providing transcontinental service with the hallmark VC-10 speed and elegance.
  • Other airlines: Adopted in limited numbers, helping to cement the VC-10’s reputation as a high-performance, mid-sized jetliner.
  • Passenger experience: Quiet cabin, smooth ride, and distinctive T-tail design made the Series 1102 a favorite among passengers.

CAD Precision and Historical Accuracy

This CAD model is built to engineering-grade standards, with all major components lofted as solid NURBS geometry. Every curve, airfoil, and fuselage section is reconstructed from historical references to preserve the exact form of the production aircraft.

  • Fuselage and wings: Fully lofted solids capturing the production geometry.
  • Engine nacelles and pylons: Precisely shaped for aerodynamic fidelity.
  • Cross-sections and structure: Exportable in DXF/DWG for design analysis or 3D printing.

While the Series 1102 may be “generic” in the sense that it represents the standard VC-10 most people recognize, it is the definitive version—a bridge between the prototype’s experimental design and the later military and super variants.

Why It Matters

The Series 1102 embodies the classic VC-10 experience. Preserving it in CAD form ensures that this important chapter of aviation history is accessible for:

  • Aviation historians studying mid-century airliner development.
  • Engineers and designers exploring aerodynamic refinements.
  • Modelers and makers creating faithful 3D-printed or RC versions.

With this model, the “generic” VC-10 comes alive as a timeless icon of British aviation, perfectly capturing the elegance, performance, and engineering of the era.


VC-10 CAD

What You Can Do With These Packs

Depending on the pack you choose, you can:

  • 3D print the aircraft
  • Build RC laser-cut models
  • Perform CAD or CFD analysis
  • Render it in Blender
  • Create posters, stickers, and merch
  • Study the engineering form

This product line is divided into clear “factory-floor” production tiers for different users: 3D printers, CAD engineers, RC builders, artists, and hobbyists.

Pack A — 3D Printing Pack (STL + 3MF Only)

Includes:

  • High-resolution STL of the aircraft
  • Pack A: Included Custom Aircraft Stands
  • Clean watertight mesh suitable for resin or FDM printing
  • 3MF file for layout reference
  • Aerodynamic, smooth loft surfaces just like wind tunnel models
  • Ready for slicing (Cura, PrusaSlicer, Bambu Studio, Orca-Slicer)
  • Optional: scaled versions (1:150, but can be re-sized as 1:72, 1:144, 1:48, etc.)

Perfect for: Collectors · Modelers · 3D printer hobbyists


VC-10 3D

Pack B — RC Maker Pack (DXF + 3MF)

Includes:

  • Full DXF cross-section slices (wing + fuselage) for laser cutting
  • Up to ~50 fuselage stations
  • Wing rib sections
  • Clean orthographic section cuts
  • 3MF file for RC layout reference

Perfect for: RC aircraft builders · Laser-cut foam/balsa makers · Workshops


VC-10 DXF

Pack C — Engineering Pack (CAD Only)

Includes:

  • Full STEP 214 file (solid bodies + surfaces)
  • Full IGES file (solid bodies + surfaces)
  • Full CATIA file (solid bodies + surfaces)
  • Complete aircraft with precise NURBS lofts

Suitable for:

  • SolidWorks
  • Fusion 360
  • CATIA
  • Creo
  • Siemens NX

Engineering-grade geometry

  • Perfect for editing, CFD pre-processing, and derivative design work
  • 3MF file for layout reference included

Perfect for: Engineers · Students · Aerospace researchers

Pack D — Merchandise Art Pack (DXF + PDF)

Includes:

  • Clean line-art views:
  • 3-side view (top, side, front) + Bonus 1-side view (belly)
  • Isometric view
  • Provided in DXF + PDF
  • PDF in both modern black-over-white diagram as well as negative-white-over-black diagram

High resolution, ready for:

  • T-shirt designs
  • Posters
  • Stickers
  • Wallpapers
  • Classroom material

Perfect for: Artists · Merch stores · Classroom projects · Aviation fans


VC-10 PDF

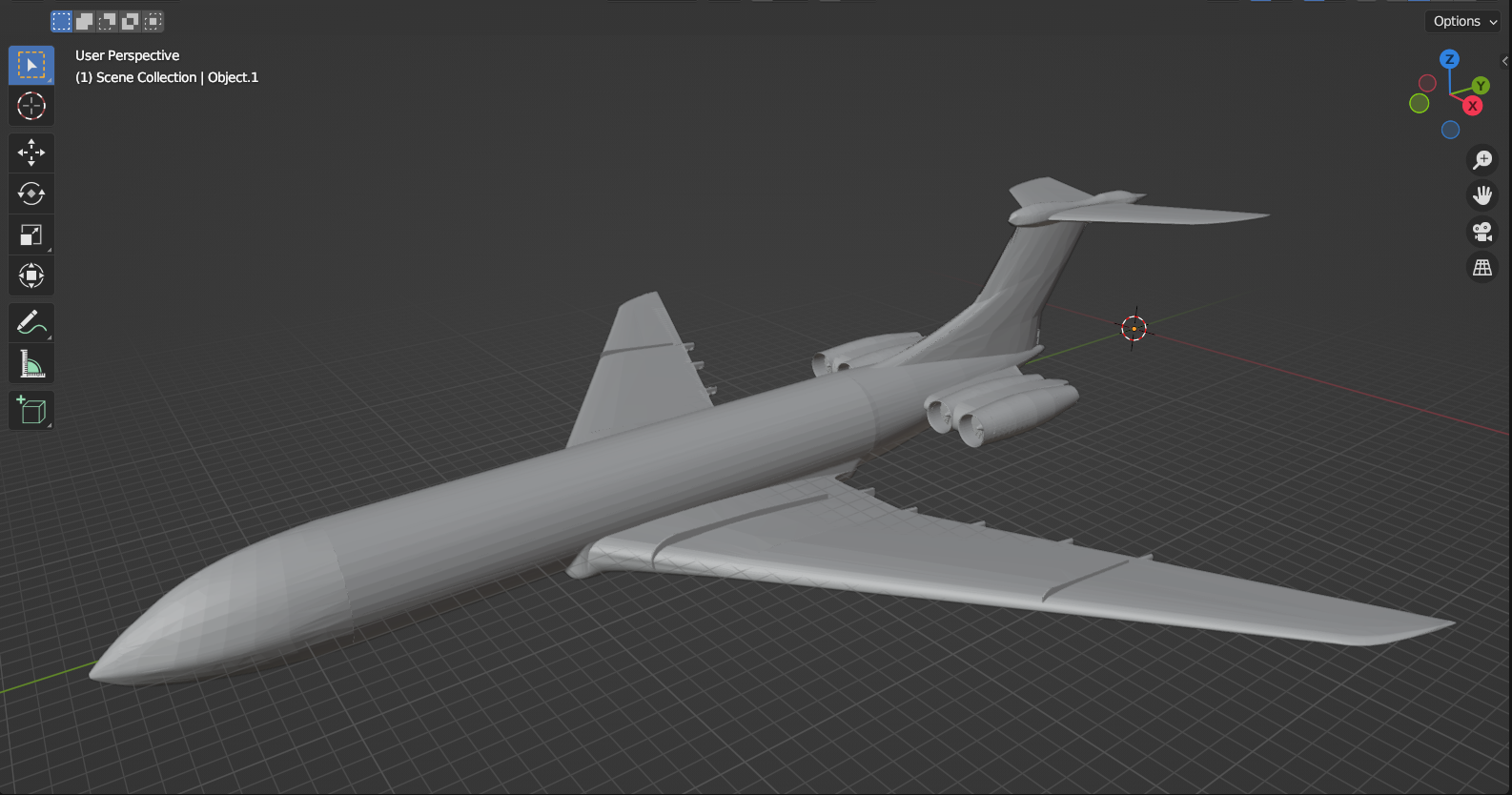

Pack E — Blender Artist Pack (OBJ + STEP + 3MF + GLB + GLTF)

Includes:

  • OBJ + GLB file exported from CAD
  • Ultra-smooth wind-tunnel-grade geometry
  • STEP file included for those who want to re-export their own mesh

Ready to import into:

  • Blender
  • Cinema 4D
  • Maya
  • ZBrush
  • 3MF file for layout reference included

Note: Untextured, raw CAD mesh. Perfect for sculpting, kitbashing, rendering, or custom livery painting.


VC-10 PDF

Perfect for: Blender users · Render artists · Hard-surface kitbashers

Ultimate Pack

Includes EVERYTHING in Packs A–E

  • STL + 3MF 3D Print model
  • DXF Cross Section Laser Cut RC
  • STEP 214 + IGES + CGR Engineering model
  • DXF + PDF + DWG Merch Poster
  • OBJ + STEP + 3MF + GLB + GLTF Render Artist

See Other Available Variants:

See Other Aircraft in the same Era

See Other VC-10 Packs

We also reserved an ultimate series bundle for all of the listed variants, which can be seen in the main Product Technical Description
