VC-10 Series 1100: The Prototype Reborn

Back to Main VC-10 site

The Series 1100 is the very first VC-10 prototype brought to life in digital form. This is the aircraft that started it all—the testbed that proved the concept and paved the way for later commercial and military variants.

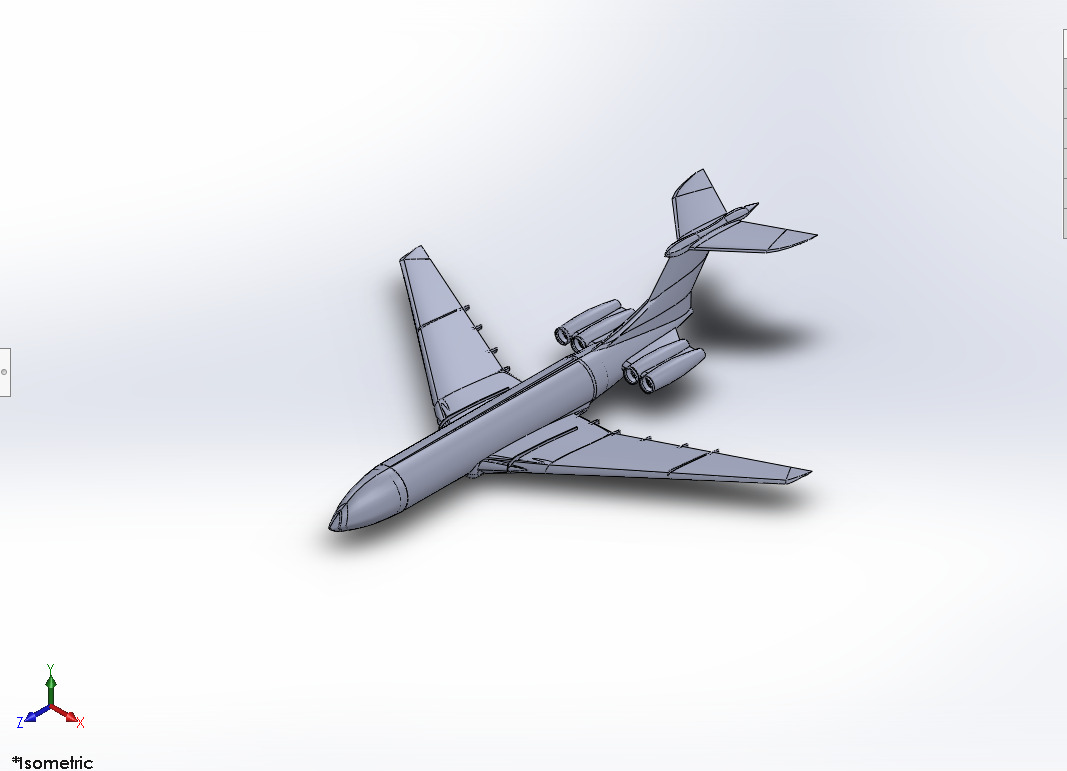

Our CAD model faithfully preserves the original dimensions and design details:

Fuselage: Original length, capturing the prototype’s proportions exactly as they first flew.
Wingtips: Squarish, reflecting the early aerodynamic experimentation before refinement in later series.
Engine nacelles: Slightly draggy than later production models, a faithful nod to the dragier configuration of the prototype.
Wing-fuselage connection: Less streamlined than future iterations, showing how engineers refined the design over time.
Engine platform: Traditional airfoil shape, without the later bulge covers used to reduce drag.
Wing root chord: Thinner than the Series 1102 and beyond, reflecting the prototype’s original aerodynamic layout.

Every detail of this CAD reconstruction is rooted in historical reference, inspired directly by G-ARTA, the aircraft that first proved the VC-10’s potential. This isn’t just a model—it’s a digital preservation of aviation history, capturing the aircraft as it existed in its earliest form.

With this prototype model, you can explore the original engineering decisions and understand how the VC-10 evolved into the legendary airliner that followed.

What You Can Do With These Packs

Depending on the pack you choose, you can:

3D print the aircraft
Build RC laser-cut models
Perform CAD or CFD analysis

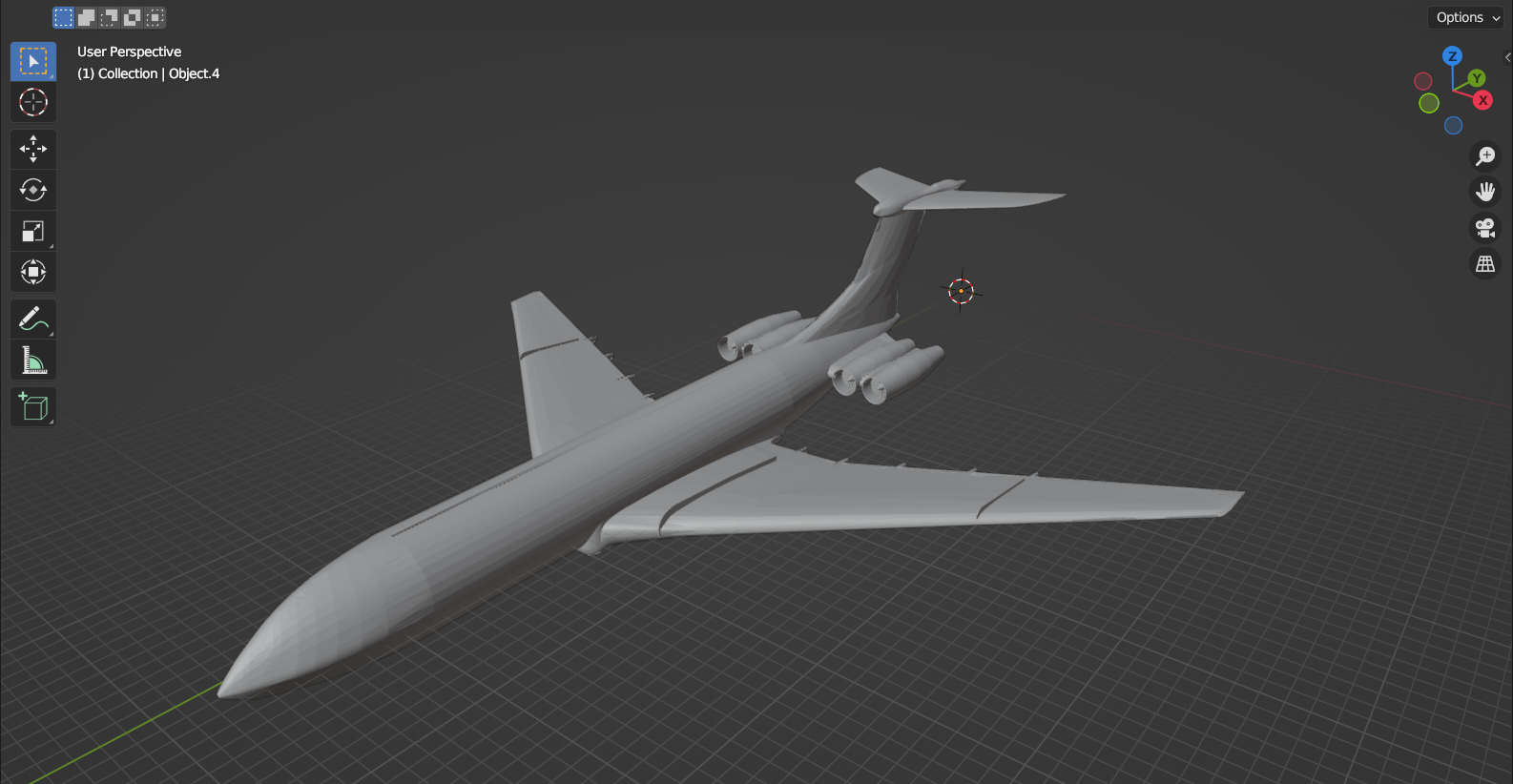

Render it in Blender
Create posters, stickers, and merch
Study the engineering form

This product line is divided into clear “factory-floor” production tiers for different users: 3D printers, CAD engineers, RC builders, artists, and hobbyists.

Pack A — 3D Printing Pack (STL + 3MF Only)

Get in Gumroad for 10€

Includes:

High-resolution STL of the aircraft
Pack A: Included Custom Aircraft Stands
Clean watertight mesh suitable for resin or FDM printing
3MF file for layout reference
Aerodynamic, smooth loft surfaces just like wind tunnel models
Ready for slicing (Cura, PrusaSlicer, Bambu Studio, Orca-Slicer)
Optional: scaled versions (1:150, but can be re-sized as 1:72, 1:144, 1:48, etc.)

Perfect for: Collectors · Modelers · 3D printer hobbyists

Pack B — RC Maker Pack (DXF + 3MF)

Get in Gumroad for 15€

Includes:

Full DXF cross-section slices (wing + fuselage) for laser cutting
Up to ~50 fuselage stations
Wing rib sections
Clean orthographic section cuts
3MF file for RC layout reference

Perfect for: RC aircraft builders · Laser-cut foam/balsa makers · Workshops

Pack C — Engineering Pack (CAD Only)

Get in Gumroad for 20€

Includes:

Full STEP 214 file (solid bodies + surfaces)
Full IGES file (solid bodies + surfaces)
Full CATIA file (solid bodies + surfaces)
Complete aircraft with precise NURBS lofts

Suitable for:

SolidWorks
Fusion 360
CATIA
Creo
Siemens NX

Engineering-grade geometry

Perfect for editing, CFD pre-processing, and derivative design work
3MF file for layout reference included

Perfect for: Engineers · Students · Aerospace researchers

Pack D — Merchandise Art Pack (DXF + PDF)

Get in Gumroad for 7€

Includes:

Clean line-art views:
3-side view (top, side, front) + Bonus 1-side view (belly)
Isometric view
Provided in DXF + PDF
PDF in both modern black-over-white diagram as well as negative-white-over-black diagram

High resolution, ready for:
