VC-10 Series 1151: The Super VC-10 – The Iconic Form

Back to Main VC-10 site

The Series 1151, or Super VC-10, is the ultimate expression of the VC-10 lineage—the aircraft that captures the imagination of aviation enthusiasts and the public alike. When most people hear “VC-10,” it’s the Super VC-10’s graceful, stretched fuselage, elegant T-tail, and sleek swept wings that come to mind. This was more than a longer version of the classic airliner. It was a refined, high-capacity airframe designed to meet the demands of modern airlines while retaining the unmistakable character of the original VC-10.

Our CAD reconstruction celebrates every nuance of this legendary aircraft, bringing the Super VC-10 to life with engineering-grade accuracy and aesthetic fidelity.

Historical Background

The Super VC-10 was conceived as an evolution of the original production VC-10 (Series 1102), responding to the growing needs of airlines for higher passenger capacity and longer-range service. Designed with a stretched fuselage and updated systems, the Super VC-10 was built to transport more passengers in comfort while maintaining the elegance and performance that made the VC-10 famous.

Fuselage stretch: Extended to accommodate additional seating, increasing capacity without compromising aerodynamic efficiency.
Wing refinements: Wings adapted from earlier designs with optimized sweep, root chords, and trailing-edge profiles to support the heavier airframe.
Engine nacelles: Streamlined, pointed, and aerodynamically efficient, reflecting all lessons from the Series 1102 and 1106.
Aerodynamic efficiency: Every curve, taper, and angle was carefully calculated to reduce drag and enhance stability, making the Super VC-10 not only larger but also smoother and faster in flight.

The Super VC-10 maintained the signature rear-mounted engines and T-tail design that defined the VC-10 family, ensuring it remained instantly recognizable, even as it embraced modern enhancements.

Operational Legacy

Although produced in limited numbers, the Super VC-10 became the flagship of the VC-10 family. Airlines and operators appreciated its combination of style, capacity, and performance:

Airline service: Provided higher-capacity, long-range service with the quiet, smooth ride passengers associated with the VC-10.
Reputation: Instantly recognizable in the skies, the Super VC-10 became an icon of British engineering and aviation design, often remembered as the “classic” VC-10 in public memory.
Enduring admiration: Its beauty, distinctive silhouette, and graceful performance ensured that even decades later, the Super VC-10 remains a favorite among aviation enthusiasts worldwide.

Design and Engineering Details

The CAD model captures every element that makes the Super VC-10 remarkable:

Fuselage: Fully lofted solid geometry, perfectly proportioned to the stretched production design.
Wings: Optimized sweep, smooth integration with fuselage, and enhanced root chords to support the higher payload.
Engine nacelles: Trailing-edge, pointed, and refined for aerodynamic efficiency and visual elegance.
Tail assembly: Iconic T-tail recreated with precision, maintaining the structural fidelity and visual balance that defines the VC-10 profile.
Cross-sections: Exportable as DXF/DWG for study or fabrication, allowing enthusiasts and engineers to explore the aircraft’s internal and external design.

Every curve, every surface, and every component is parametric, NURBS-based, and fully solid, ensuring the Super VC-10 is as accurate and lifelike as possible—far beyond a simple mesh model.

Why It Matters

The Super VC-10 represents the culmination of the VC-10’s development—the moment when elegance, utility, and performance aligned perfectly. Preserving it in CAD form means that:

Aviation historians can study the final and most iconic iteration of a legendary airliner.
Engineers and designers can explore advanced aerodynamic and structural refinements.
Modelers, 3D-printing enthusiasts, and RC hobbyists can recreate the aircraft faithfully, capturing the exact lines that define the VC-10 image in public imagination.

The Super VC-10 is more than an aircraft—it is a symbol of British aerospace engineering, mid-century elegance, and the dream of flight. Its proportions, sweeping lines, and rear-mounted engines make it instantly recognizable, and our CAD model preserves that legacy in full digital fidelity, ensuring that this iconic aircraft can be experienced, studied, and admired for generations to come.

The Legacy Preserved

With the Super VC-10, we celebrate not just an airliner, but a legend. Its silhouette is the one most people visualize when they think “VC-10”, and its story—of refinement, ambition, and timeless elegance—is captured completely in this CAD reconstruction.

From fuselage to wings, nacelles to tail, every detail has been crafted with love, respect, and historical accuracy, ensuring that the Super VC-10 remains the definitive face of the VC-10 family, digitally immortalized for enthusiasts and professionals alike.

What You Can Do With These Packs

Depending on the pack you choose, you can:

3D print the aircraft
Build RC laser-cut models
Perform CAD or CFD analysis
Render it in Blender
Create posters, stickers, and merch
Study the engineering form

This product line is divided into clear “factory-floor” production tiers for different users: 3D printers, CAD engineers, RC builders, artists, and hobbyists.

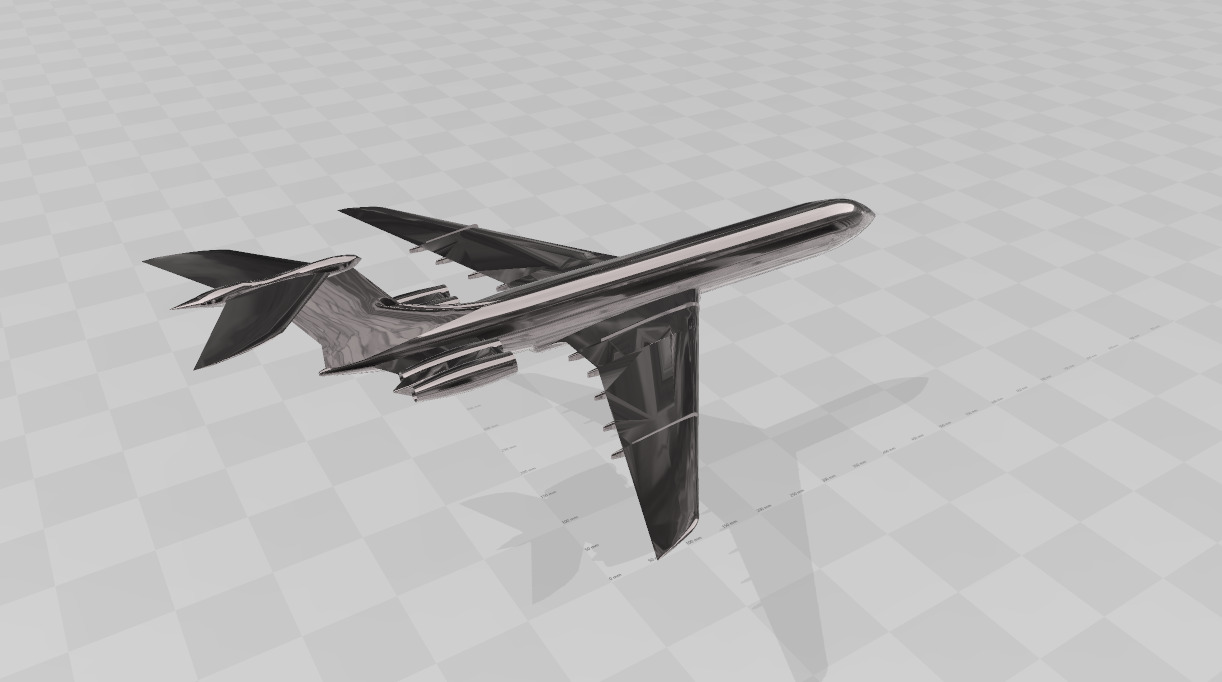

Pack A — 3D Printing Pack (STL + 3MF Only)

Get the Pack for €10 from Gumroad

Includes:

High-resolution STL of the aircraft
Pack A: Included Custom Aircraft Stands
Clean watertight mesh suitable for resin or FDM printing
3MF file for layout reference
Aerodynamic, smooth loft surfaces just like wind tunnel models
Ready for slicing (Cura, PrusaSlicer, Bambu Studio, Orca-Slicer)
Optional: scaled versions (1:150, but can be re-sized as 1:72, 1:144, 1:48, etc.)

Perfect for: Collectors · Modelers · 3D printer hobbyists

Pack B — RC Maker Pack (DXF + 3MF)

Get the Pack from Gumroad for €15

Includes:

Full DXF cross-section slices (wing + fuselage) for laser cutting
Up to ~50 fuselage stations
Wing rib sections
Clean orthographic section cuts
3MF file for RC layout reference

Perfect for: RC aircraft builders · Laser-cut foam/balsa makers · Workshops

Pack C — Engineering Pack (CAD Only)

Get the Pack from Gumroad for €20

Includes:

Full STEP 214 file (solid bodies + surfaces)
Full IGES file (solid bodies + surfaces)
Full CATIA file (solid bodies + surfaces)
Complete aircraft with precise NURBS lofts

Suitable for:

SolidWorks
Fusion 360
CATIA
Creo
Siemens NX

Engineering-grade geometry

Perfect for editing, CFD pre-processing, and derivative design work
3MF file for layout reference included

Perfect for: Engineers · Students · Aerospace researchers

Pack D — Merchandise Art Pack (DXF + PDF)

Get the Pack from Gumroad for €7

Includes:

Clean line-art views:
3-side view (top, side, front) + Bonus 1-side view (belly)
Isometric view
Provided in DXF + PDF
PDF in both modern black-over-white diagram as well as negative-white-over-black diagram

High resolution, ready for:
