VC-10: Re-Engineered for the Digital Age
What Is It?

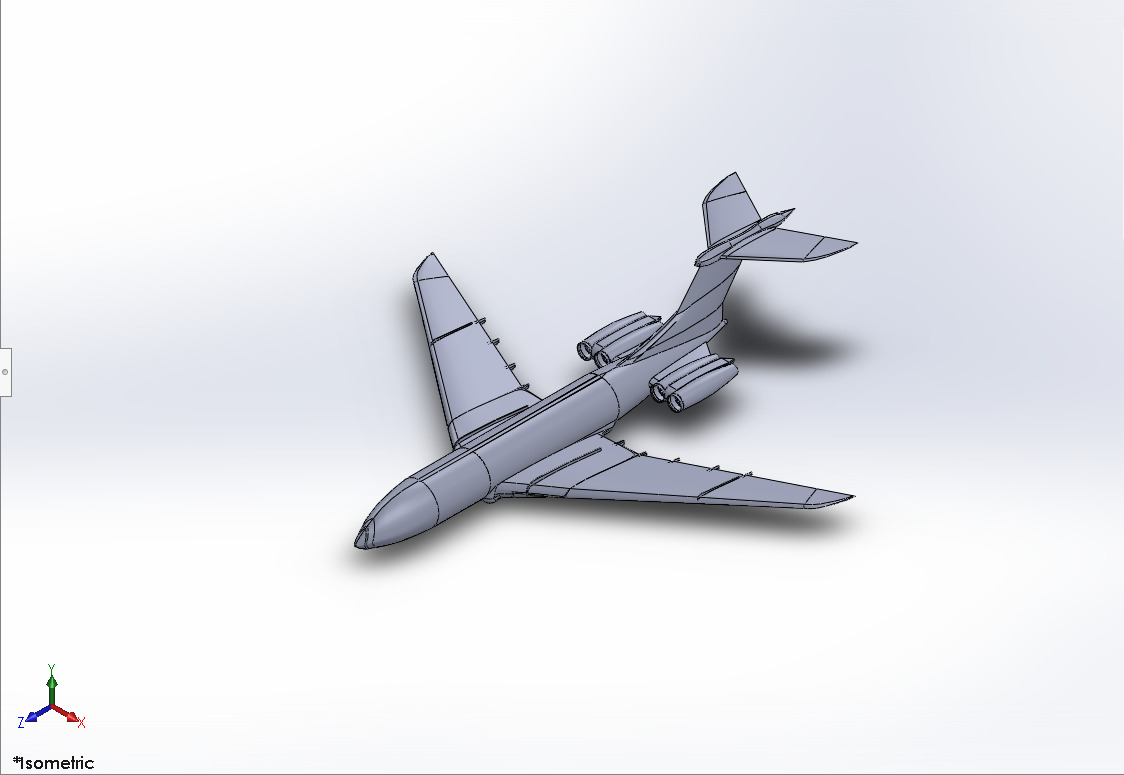

The VC-10 was one of Britain’s most iconic airliners—famous for its elegance, quiet cabin, and unmatched short-runway performance. With its four rear-mounted engines and dramatic T-tail, the VC-10 wasn’t just another airliner; it was a masterpiece of mid-century aerospace design. Today, this project brings the VC-10 back to life as a meticulously engineered, fully parametric CAD recreation built to modern standards.
History & Known Variants
Over its lifetime, the VC-10 evolved through several distinctive versions:
- Standard VC-10 – Long-range commercial airliner.
- Super VC-10 – Stretched fuselage, improved engines, greater capacity.
- VC-10 C1/C1K – RAF transport and tanker conversions.
- K2/K3/K4 Tankers – Converted civil variants repurposed for aerial refueling.
Its small production run makes each airframe historically significant—and worth preserving digitally.
Why Created a New CAD Model Today
Original engineering drawings are fragmented or inaccessible, and many proposed variants were never built. With modern CAD methods, we can now preserve the VC-10 with accuracy and dimensional fidelity impossible at the time of its design. This model unifies decades of documentation, imagery, and surviving data into one precise, rebuildable digital airframe.
Why It’s Cool
This isn’t a cosmetic model—it’s an engineering reconstruction.
It allows enthusiasts, makers, and researchers to:
- Explore alternate versions of the VC-10 never built
- 3D-print or CNC components with reliable geometry
- See the aircraft as its original engineers intended
- Hold a piece of aviation history in digital or physical form
It’s the VC-10 reimagined for creators of the 21st century.
The Power of CAD: Bringing Non-Existing Aircraft to Life
CAD makes it possible to turn conceptual VC-10 variants into real, manufacturable geometries. This project includes all major formats:
- 3MF
- STL
- STEP
- IGES
- OBJ
- GLTF
- GLB
- CGR
- plus DXF/DWG cross-sections for precise reference.
This is not a cosmetic mesh—it’s an engineering-grade aircraft body reconstructed from the ground up.
Why NURBS-Based Lofting Matters
The entire aircraft is modeled using true NURBS geometry and parametric lofts, not polygon meshes and not patched-together surfaces. Every major component—fuselage, wings, airfoils, nacelles, stabilizers, and nose assemblies—is built as a continuous, solid loft, ensuring:
- Mathematically smooth curvature Accurate aerodynamic profiles
- Manufacturable surfaces
- Clean, exact cross-sections
- Zero surface gaps or stitching errors
Where most 3D aircraft models rely on polygon meshes or knitted surface patches, this model is a fully solid, precision-based NURBS reconstruction.
Meshes (OBJ, STL, etc.) are only generated as exports for printing or visualization. The true master model remains a high-fidelity mathematical representation—closer to real aircraft engineering than typical 3D models.
In short: solid NURBS = accuracy.
Mesh = output.
Why It’s a Big Deal
Digitally preserving the VC-10 ensures that its design, engineering concepts, and beauty are not lost. This project opens the door to:
Academic study of a legendary airliner’s structure High-fidelity RC engineering based on accurate geometry Future variant experimentation and aerodynamic analysis Makers and hobbyists recreating parts with real precision
This isn’t nostalgia. It’s preservation, innovation, and engineering heritage—reborn.
VC-10 Variants that we got
The VC-10 wasn’t just one aircraft—it was a family of remarkable designs:
- Series 1100 – The bold prototype that set the stage for everything to come.
- Series 1102 – The backbone of commercial service, flying for BOAC and other airlines.
- Series 1106 – The RAF’s workhorse, adapted for transport and refueling missions.
- Series 1151 – The Super VC-10, a stretched, higher-capacity version that pushed the limits of its design.
- Series 1400 – A “what-if” dream: a shorter, 80–138 passenger variant that never left the drawing board.
From prototype to production, military service to visionary concepts, each series tells a story of innovation, ambition, and what makes the VC-10 an aviation legend.
Ultimate Series Bundle
We also reserved an ultimate series bundle for all of the listed variants, which can be seen in the main Product Technical Description
OR you always can freely choose for a single series aircraft available as 1100, 1102, 1106, 1151, 1400
